After over a decade in the industry, we’ve finally decided to release a Flash study. This will be an ongoing project, so make sure to keep checking this page for updated reports. If you have anything to contribute or any questions, feel free to leave a comment or send us an email.
Back when we initiated the customized USB industry eight years ago, a lot has transformed. Prices have dropped significantly, market demand has surged, and technology has advanced. Today, we stock more drives than we did when we first started. Over the years, we’ve encountered various types of drives and consistently aimed to use the most reliable components. Here’s what we’ve learned:
- Most NAND Flash is manufactured by Samsung, Toshiba, Micron, Hynix, and Intel.
- The smallest capacity currently produced by the aforementioned NAND Flash manufacturers is 8GB. Any smaller capacities you find on the market are typically made from downgraded Flash.
- Downgraded Flash comes from higher-capacity chips that contain defective sectors. These sectors are isolated, and the chip is repurposed for the next smallest capacity (for example, an 8GB chip with defective sectors could be used as a 4GB drive).
- The USB Controller is crucial for the functionality of the USB drive. The combination of the Controller chip, Flash chip, and other components determines the overall quality of the USB drive.
- In the OEM market, the most popular controllers include Alcor Micro, SMI (Silicon Motion), and Chipsbank.
For this study, we’ve tested several branded USB drives sourced from our partners, along with some OEM drives that we either assembled ourselves or sourced directly from China. We’ve used—or previously used—all of these components based on customer budgets and technical requirements.
We utilized CrystalDiskMark to measure sequential read/write speeds using both 50MB and 1GB (1000MB) test sizes. Additionally, we used Check Flash to detect any errors in the drives.
---

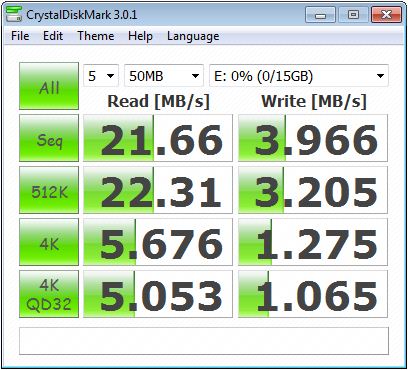

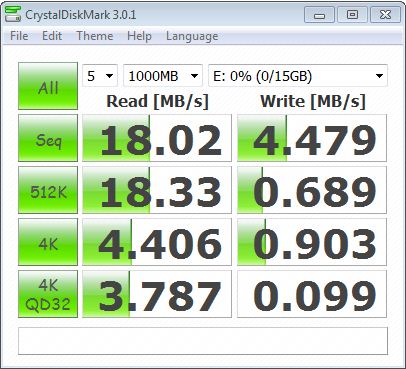

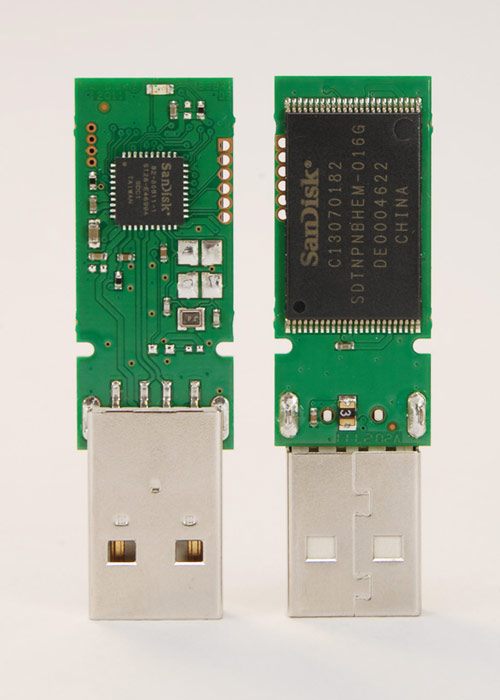

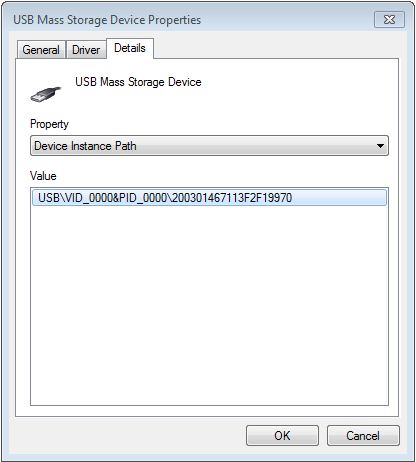

**SanDisk**
- SanDisk Flash and Controller
- 16GB USB 2.0 tested with >14.9GB of usable memory
- Read Speed: 21.66MB/s, Write Speed: 3.966MB/s
[](http://bsg-i.nbxc.com/blog/16ce9628463712b1eeb0ac1b60bb13b9.jpg)
[](http://bsg-i.nbxc.com/blog/2c32df2c79c3d93d768ab2b5a486e999.jpg)
[](http://bsg-i.nbxc.com/blog/5fe8cf4b2ec9f27bf4abd4f8b060a533.jpg)
[](http://bsg-i.nbxc.com/blog/e14d263615546e8e998fa84b14193ce1.jpg)
[](http://bsg-i.nbxc.com/blog/81514ad987f78a2cbfab4b368a141370.jpg)
---

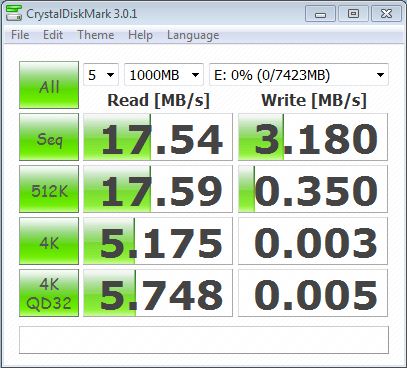

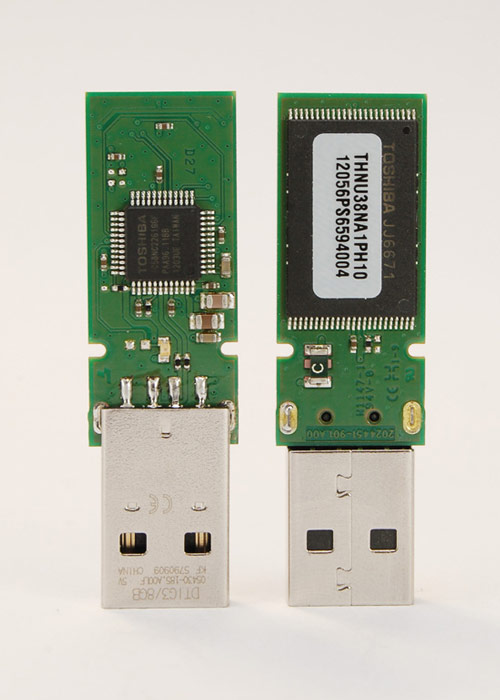

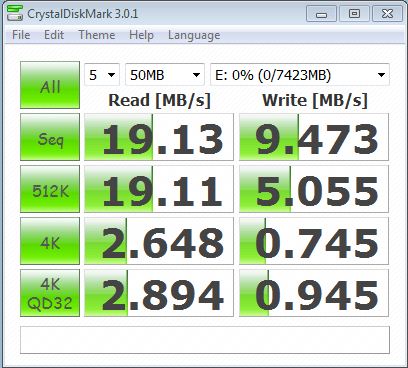

**Kingston**
- Toshiba Flash and TC58NC226166F Controller

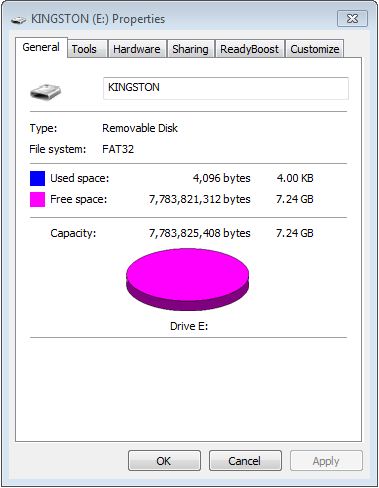

- 8GB USB 2.0 tested with >7.24GB of usable memory
- Read Speed: 19.13MB/s, Write Speed: 9.473MB/s

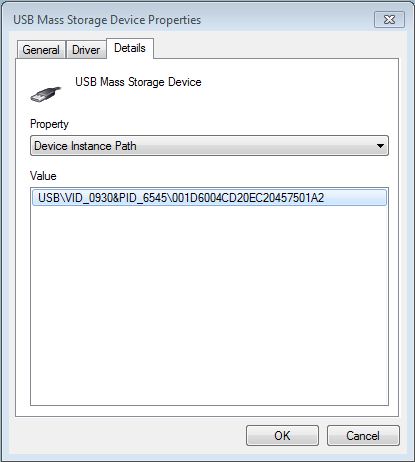

- Controller VID 0930 and PID 6545
[](http://bsg-i.nbxc.com/blog/a05fff302578e4e5289b5bce754377c6.jpg)
[](http://bsg-i.nbxc.com/blog/fa71b7724b4c2626725d15b2fc6b0dca.jpg)
[](http://bsg-i.nbxc.com/blog/df0fa63ec89343aad46e208efb03afc0.jpg)
[](http://bsg-i.nbxc.com/blog/a62942e9b0de323feaafe2a38509ca8c.jpg)
[](http://bsg-i.nbxc.com/blog/24b77b5212dbce9231a024dc079af92a.jpg)
---

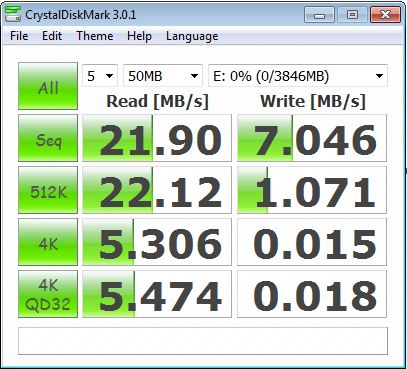

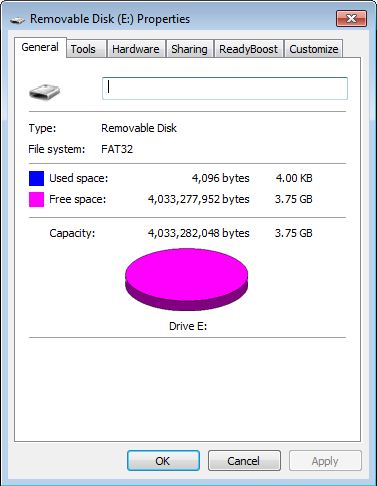

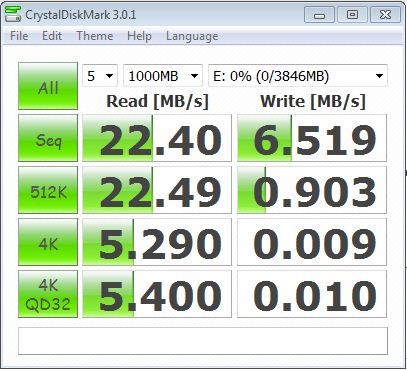

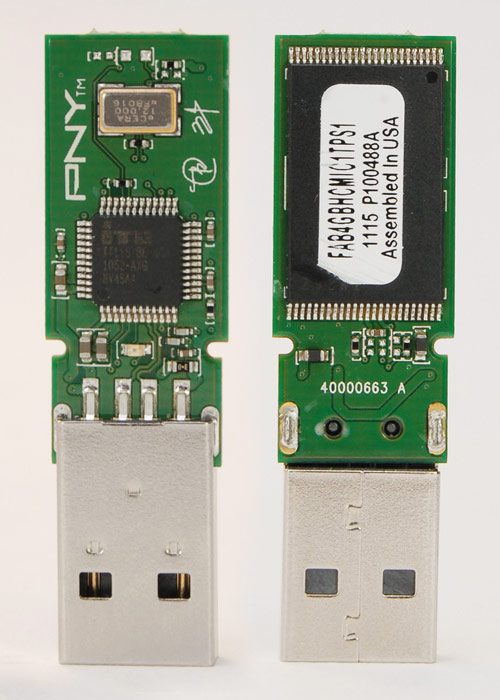

**PNY**
- Unidentified Flash, ITE IT1167BE Controller
- 4GB USB 2.0 tested with >3.75GB of usable memory
- Read Speed: 21.90MB/s, Write Speed: 7.046MB/s

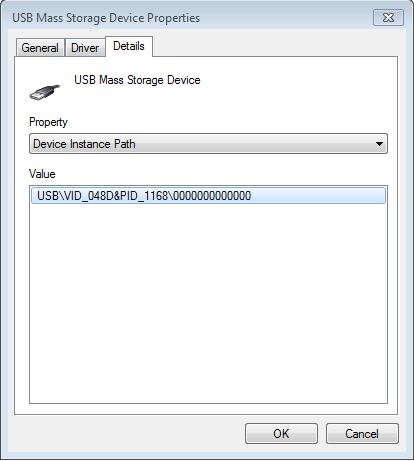

- Controller VID 048D and PID 1168
[](http://bsg-i.nbxc.com/blog/2ff9b250ba3e9570a2821929f29d27a2.jpg)
[](http://bsg-i.nbxc.com/blog/648809266059949748df4dc9fe838722.jpg)
[](http://bsg-i.nbxc.com/blog/8e1fd6bdc2325b7f28d5016603978c90.jpg)
[](http://bsg-i.nbxc.com/blog/35af3177984617132ef2ef54dcfe8bb6.jpg)
[](http://bsg-i.nbxc.com/blog/7ada56f100c7560ae8c4f020ab559d28.jpg)
---

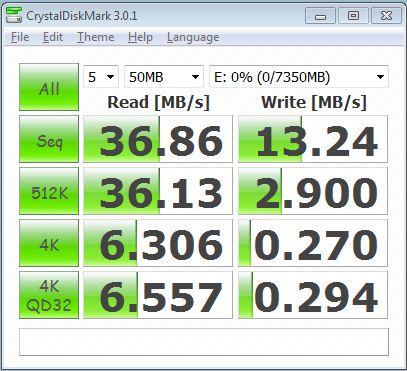

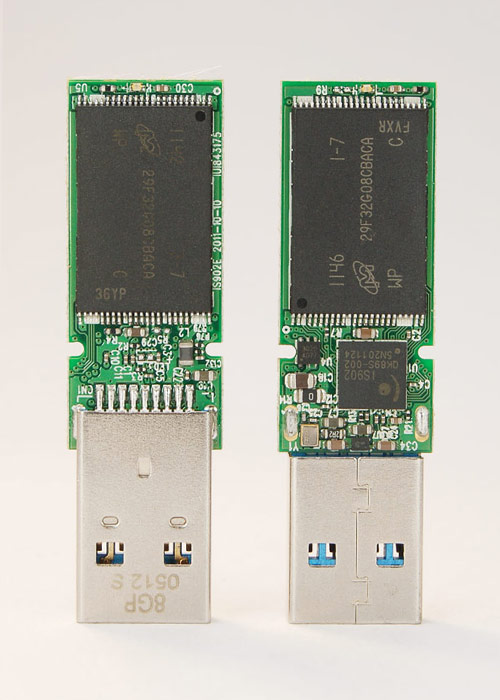

**SuperTalent USB 3.0**
- Micron Flash, Innostor IS902 Controller

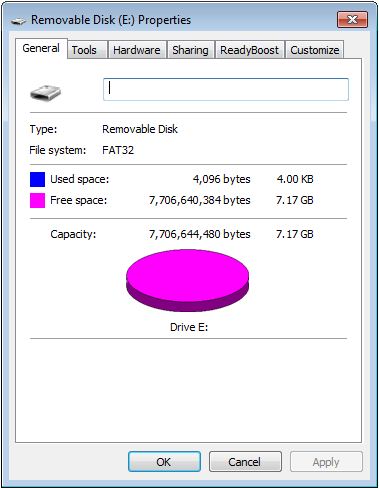

- 8GB USB 3.0 tested with >37.17GB of usable memory

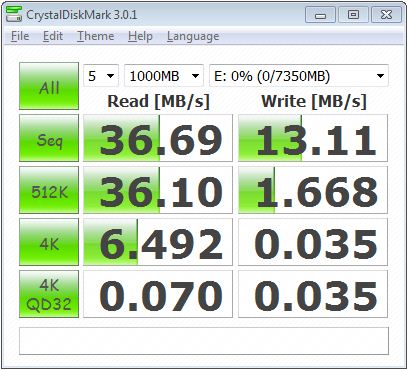

- Read Speed on USB 2.0 Port: 36.86MB/s, Write Speed on USB 2.0 Port: 13.24MB/s

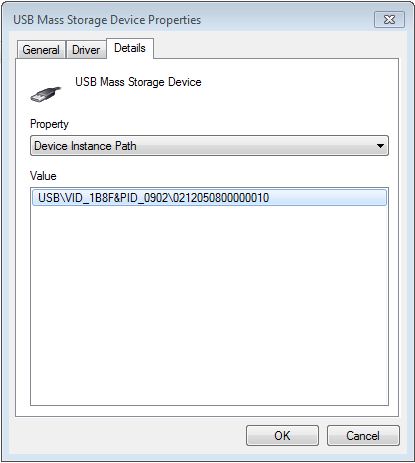

- Controller VID 1B8F and PID 0902
[](http://bsg-i.nbxc.com/blog/30ad381f291c05deab45c9e0fa222399.jpg)
[](http://bsg-i.nbxc.com/blog/9f44b564d19c9132752d47c31dbe6836.jpg)
[](http://bsg-i.nbxc.com/blog/96e63bcc7a88908eed8ee477d4dfebbb.jpg)
[](http://bsg-i.nbxc.com/blog/4cea2a1de889f2e8c7c8561f60c3f2e6.jpg)
[](http://bsg-i.nbxc.com/blog/4c0d48d7686aae9c3febfdd79cffd0ce.jpg)
---

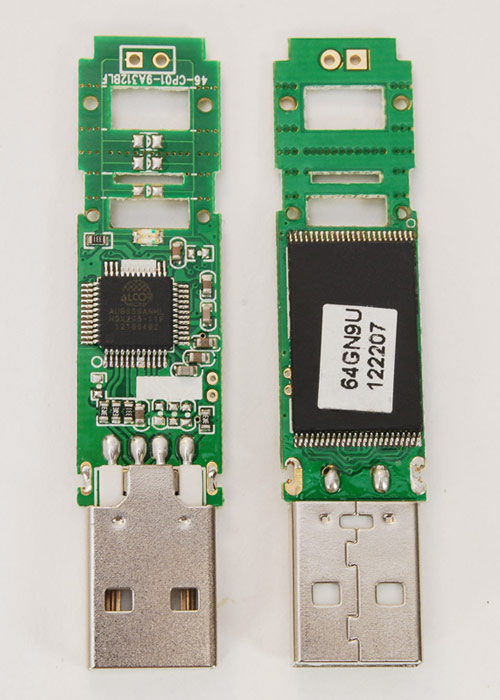

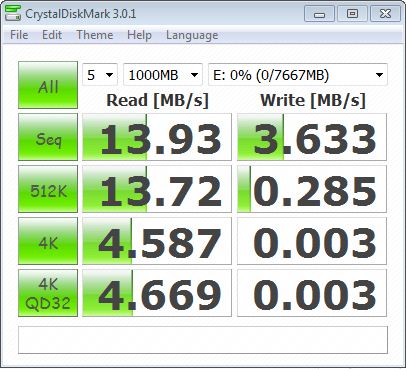

**OEM Alcor AU6989**
- Unidentified Flash, Alcor AU6989 Controller

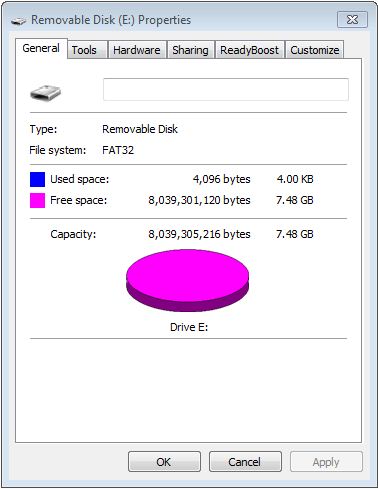

- 8GB USB 2.0 tested with >7.48GB of usable memory

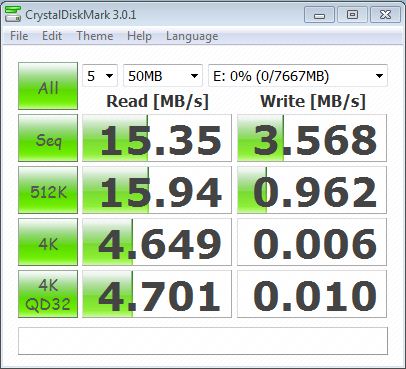

- Read Speed: 15.35MB/s, Write Speed: 3.568MB/s
- Controller VID 058F and PID 6387
[](http://bsg-i.nbxc.com/blog/4dd3e2f8dcc957b3cb0485c2a745c373.jpg)
[](http://bsg-i.nbxc.com/blog/e9e3b0688c6d7bf20194902ae0fc1808.jpg)
[](http://bsg-i.nbxc.com/blog/182899ca970c1f609d2159c95b56aa8f.jpg)
[](http://bsg-i.nbxc.com/blog/29014df83f845ee93eec11bfeaae5d4e.jpg)
[](http://bsg-i.nbxc.com/blog/ca664ce713577b476fa3957c9cfb7a22.jpg)
---

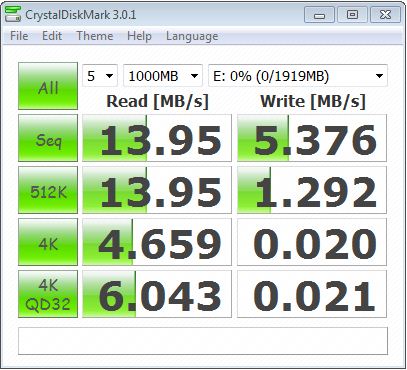

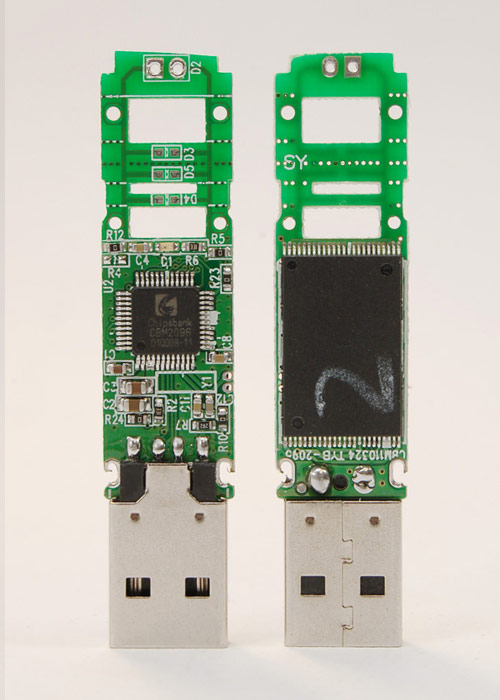

**OEM Chipsbank CBM2096**
- Unidentified Flash, Chipsbank CBM2096 Controller
- 2GB USB 2.0 tested with >1.87GB of usable memory

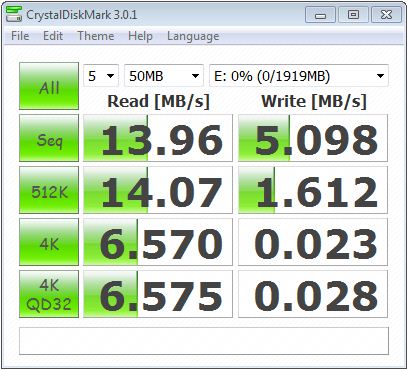

- Read Speed: 13.96MB/s, Write Speed: 5.098MB/s

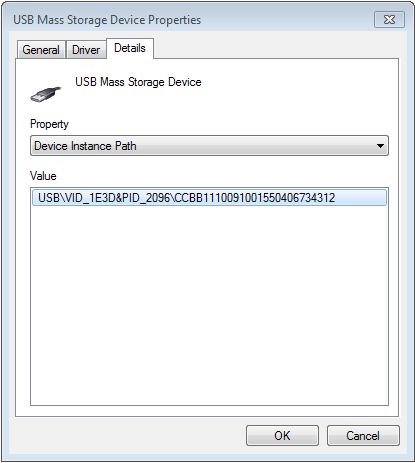

- Controller VID 1E3D and PID 2096
[](http://bsg-i.nbxc.com/blog/9b008ce5ed6765b3c280f33a0a8ccf87.jpg)
[](http://bsg-i.nbxc.com/blog/35d754cde5072c9f740cff3b396f286d.jpg)
[](http://bsg-i.nbxc.com/blog/87c3dcc54c1eaef52995d21382153231.jpg)
[](http://bsg-i.nbxc.com/blog/e349bd99c3f5778adbc8f0560b396fa3.jpg)
[](http://bsg-i.nbxc.com/blog/f000fd89cc645ced12779defb412133b.jpg)
---

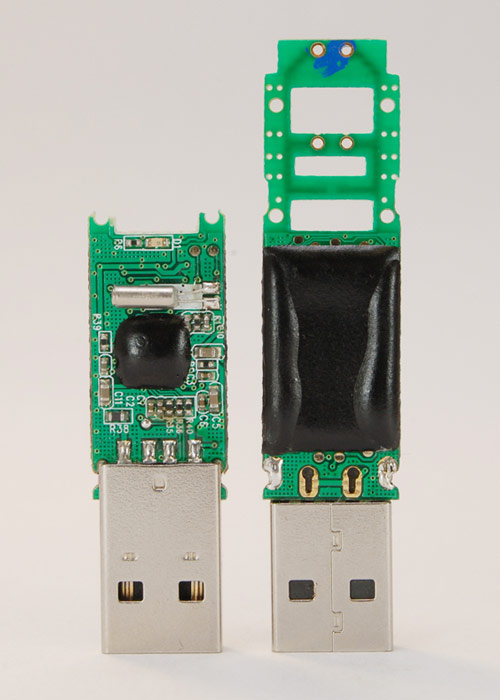

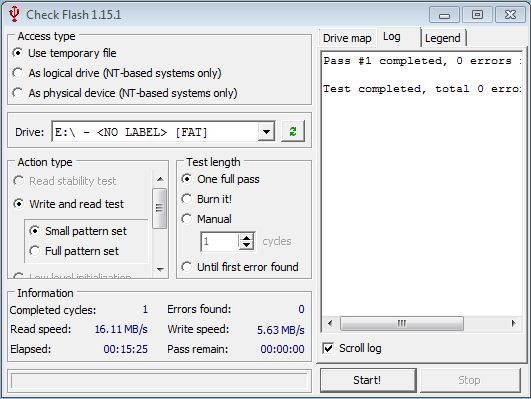

**OEM Unidentified “Blobâ€**
- Unidentified Flash, Unidentified Controller
- 2GB USB 2.0 tested with >1.86GB of usable memory

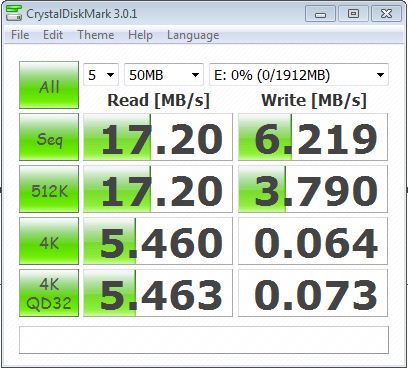

- Read Speed: 17.20MB/s, Write Speed: 6.219MB/s

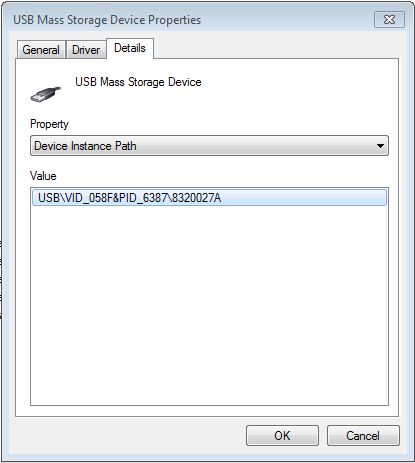

- Controller VID 058F and PID 6387 (research indicates this USB drive uses a Chipsbank CBM2096 controller)
[](http://bsg-i.nbxc.com/blog/8a414e506e75ee13feb59a59e133ba00.jpg)
[](http://bsg-i.nbxc.com/blog/df60b21a8f5dd4c3c281df81f74a16b2.jpg)
[](http://bsg-i.nbxc.com/blog/587d609f98936a09d5fde966b820fd69.jpg)
[](http://bsg-i.nbxc.com/blog/ecdeed905ba4db4f0f4774aa81e35bab.jpg)
[](http://bsg-i.nbxc.com/blog/91d41b7ca76cb802c499abbc9281946a.jpg)
[](http://bsg-i.nbxc.com/blog/e8c6a8176f59490debb5349cd500a381.jpg)
As mentioned before, this will remain an ongoing project, so stay tuned for updates. If you have any thoughts, contributions, or questions, don’t hesitate to reach out!
